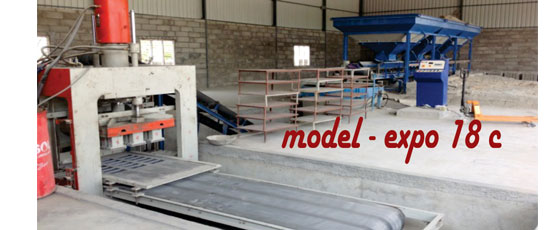

MODEL : expo18 c

Automatic Fly Ash Bricks Plant is used to produce Best Quality Fly Ash Bricks with High Pressure. This Plant is available in Four Models to produce 3240 Bricks per Hour

Automatic Fly Ash Bricks Plant mainly consists of following Equipments:

1.Pan Mixture:

clay brick making machine

Pantype Mixer of required Batch Capacity is supplied along with the Plant to mix the Raw Materials like Fly Ash, LIME, GYPSUM, SAND OR STONE DUST (Cement), Water etc homogeneously. Sidewall & Bottom of the Pan Mixer is fabricated from Branded Mild STEEL Material with specific measurements.Importance to the guarantee to the life of the machines and Easy maintenance. Make Crompton gears and motors Crompton / kirloskar / Siemens. Fly ash Mixing: Standard steel scrapper with Heavy rollers. Fly ash mix 500 kg Batch Capacity of mixer –fly ash 40% , stone dust/ sand 40% ,lime 10%-15% ,gypsum 5%,cement 2.5%,water 10% India‘s first design to avoid manual discharge mechanical door open to hydraulic door open.

2.Mixed Material Belt Conveyor:

clay brick making machine

Belt Conveyor is provided to transfer the Mixed Materials from Pan Mixer to the conveyor loading Hopper to Hydraulic Brick machine hopper. The parts like channel Structure & steel Idler Roller are fabricated from TATA & VIZAG Steels Structural Materials. Moving Parts like Steel Idlers Rollers, motorized gear belt driving steel Rollers Oxford or plycon synthetic Rubber Conveyor Belt is provided with M24 grade, 3 Ply Rating, Endless.

3.Hydraulic Brick Machine

clay brick making machine

Hydraulic Brick Machine is fabricated from Window Type Plate of Specific thickness to withstand the High Pressure applied on Bricks. Bricks Press created about 6 to 8 MT pressure on each Bricks to make it Very Strong & easy handled. Bricks Press operated PLC control based automatically Panel & Hydraulic Power Pack. Prefilled Technology is provided to ensure Fast & Reliable work for Long time. Hydraulic Cylinders are made with Standard materials, workmanship & accuracy. Feeder fan is provided to ensure quick filling of raw materials in mould cavity. Proximity auto limit switch control is used to complete the auto cycle.

4.Hydraulic Power Pack:

Hydraulic Power pack of required sum capacity & other Hydraulic Accessories like Hydraulic Pump, Direction Control Valves, Pressure Control Valves, Pressure Gauge, Oil Level Indicator etc is provided along with the Plant. Hydraulic Power Pack supplies Hydraulic Oil with required Pressure & Quantity as per required to complete the Pressing Cycle. Most of the accessories used in Power Make are manufactured by YUKEN & Polyhydron.

5.Electric Panel Board:

clay brick making machine

Hydraulic Power pack of required sum capacity & other Hydraulic Accessories like Hydraulic Pump, Direction Control Valves, Pressure Control Valves, Pressure Gauge, Oil Level Indicator etc is provided along with the Plant. Hydraulic Power Pack supplies Hydraulic Oil with required Pressure & Quantity as per required to complete the Pressing Cycle. Most of the accessories used in Power Make are manufactured by YUKEN & Polyhydron.

SPECIFICATION

MODEL: EXPO 18 C

PAN MIXER

PM/1000/HD

Pan Mixer Motor

30HP 1440

Mixer Speed

30-35

Mixing  Scrapping Arms

Two

Crushing Rollers

Two

Pan Mixer Feeding

MANUAL/ CONVEYOR

Pan Mixer Gate

MANUAL/AUTOMATIC/HYDRAULIC

Belt Conveyor Width

650MM

Belt Conveyor Power

5HP

Belt Conveyor LENGTH

25FEET

Bricks Press Type

 HYDRAULIC/PRE-FILLED TYPE

Bricks Press Capacity /10 BRICKS

3-STROKE PER MINUTE /3240 PER HOUR

Bricks Press Tonnage

MAX 47 MT

Pressing Cylinder

Pipe Dia 300mm Shaft Dia.180 mm/Length  550mm

Bricks per Stroke

18BRICKS

Bricks Sizes

21 BRICKS PER STROKE- 190 X 90X 90mm

18 BRICKS PER STROKE- 200 X 100X 100mm

18 BRICKS PER STROKE- 230 X 110X 75mm

15BRICKS PER STROKE- 250 X 120X 75mm

6BRICKS PER STROKE - 230 X 230 X 100 mm

Moulding  area



Hydraulic Motor

20 HP/1440 RPM

Trolley Feeder Motor

NIL

(Hydraulic achine)

Conveyor motor.

3HP/1440 RPM

Hyd. Oil Tank

400 LTS

Hydraulic Valves

VIKERS /YUKEN Make 240 VAC

High Pressure Pump

VIKERS /YUKEN Make VAN Pump

High Flow Pump

VIKERS /YUKEN Make VAN Pump

Oil Cooling

Water or  Air Cooling

Control Panel

SIEMENS  MAKE  PLC Based Control Panel

Pallate Feeding

MANUAL/ AUTOMATIC

VIBRATOR Motor

3 HP/2880 RPM - 1.5 KW

Fly ash Brick Machines-BeltType

Fly ash Brick Machines- PalletType

Lakshmi & Co.Group of Companies

  • Coimbatore, India
  • Business Type: Brick MachineManufacturer
  • Contact Person: Mr. K. NandaGopal (CEO)
  • Address: No.30, Amman Kovil Street, Venkitapuram, G. C. T.Post, Coimbatore.
  • sales.lakshmiandco@gmail.com

Model- expo 18 C QUOTATION

  •
  •
